Solar wind
speed: 380.8 km/sec
density: 21.8 protons/cm3
explanation | more data
Updated: Today at 2351 UT
X-ray Solar Flares
6-hr max: B4
1709 UT Jan20
24-hr: C1
0734 UT Jan20
explanation | more data
Updated: Today at: 2300 UT
Daily Sun: 20 Jan 16
Not one of these sunspots poses a threat for strong flares. Solar activity remains low. Credit: SDO/HMI

Sunspot number: 55
What is the sunspot number?
Updated 20 Jan 2016

Spotless Days
Current Stretch: 0 days
2016 total: 0 days (0%)
2015 total: 0 days (0%)

2014 total: 1 day (<1%)
2013 total: 0 days (0%)
2012 total: 0 days (0%)
2011 total: 2 days (<1%)
2010 total: 51 days (14%)
2009 total: 260 days (71%)

Updated 20 Jan 2016


The Radio Sun
10.7 cm flux: 98 sfu
explanation | more data
Updated 20 Jan 2016

Current Auroral Oval:
Switch to: Europe, USA, New Zealand, Antarctica
Credit: NOAA/Ovation
Planetary K-index
Now: Kp= 5 storm
24-hr max: Kp= 5
storm
explanation | more data
Interplanetary Mag. Field
Btotal: 14.9 nT
Bz: 1.5 nT north
explanation | more data
Updated: Today at 2351 UT
Coronal Holes: 20 Jan 16

A stream of solar wind flowing from this southern coronal hole could reach Earth as early as Jan. 22. Credit: SDO/AIA.
Noctilucent Clouds The southern season for noctilucent clouds began on Dec. 13, 2015. The coverage of NLCs over Antarctica is rapidly multiplying in 2016.
Switch view: Ross Ice Shelf, Antarctic Peninsula, East Antarctica, Polar
Updated at: 01-20-2016 15:55:02
SPACE WEATHER
NOAA Forecasts
Updated at: 2016 Jan 20 2200 UTC
FLARE
0-24 hr
24-48 hr
CLASS M
05 %
05 %
CLASS X
01 %
01 %
Geomagnetic Storms:
Probabilities for significant disturbances in Earth's magnetic field are given for three activity levels: active, minor storm, severe storm
Updated at: 2016 Jan 20 2200 UTC
Mid-latitudes
0-24 hr
24-48 hr
ACTIVE
20 %
25 %
MINOR
05 %
05 %
SEVERE
01 %
01 %
High latitudes
0-24 hr
24-48 hr
ACTIVE
15 %
20 %
MINOR
25 %
35 %
SEVERE
25 %
30 %

Wednesday, Jan. 20, 2016
What's up in space


Marianne's Heaven On Earth Aurora Chaser Tours Chasethelighttours.co.uk invites you to join them in their quest to find and photograph the Aurora Borealis. Experience the winter wonderland in the Tromsø Area.


Chase the Light Tours

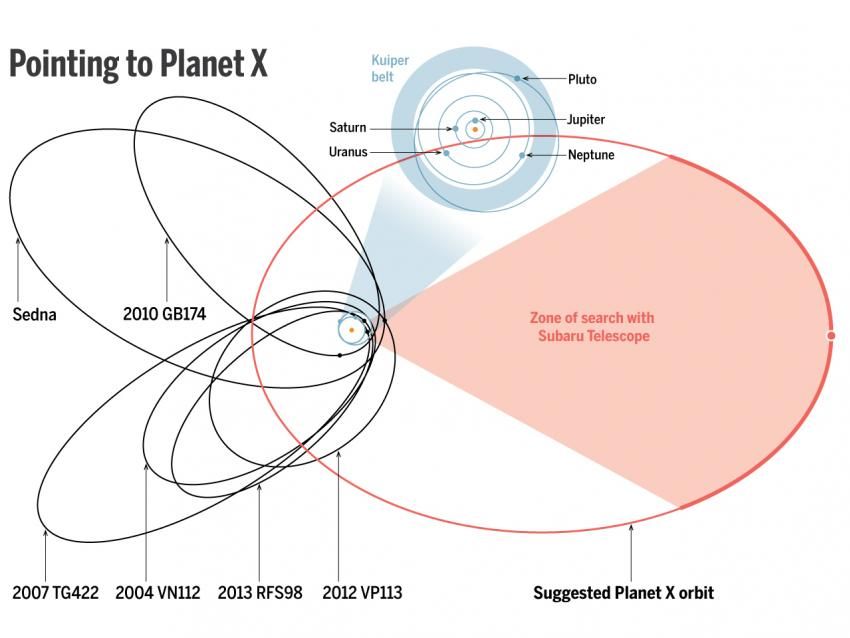

A NEW 9TH PLANET BEYOND PLUTO? Today, planetary scientists, Konstantin Batygin and Mike Brown of Caltech announced intriguing evidence for a Neptune-sized planet orbiting the sun beyond Pluto. Sedna and five other objects in the outer solar system are grouped together as if they are being shepherded by a larger body. That body, say Batygin and Brown, is a planet at least 10 times as massive as Earth traveling along an elliptical orbit more than 200 AU from the sun. This is the most persuasive argument so far for the existence of a "Planet X." Until someone actually sees the planet in a telescope, however, it's just a hypothesis. So let the hunt begin! The full story was published in the Jan. 20th edition of Science Magazine.

SOUTHERN CORONAL HOLE: High above the sun's south pole, a vast hole has opened in the sun's atmosphere. This is called a "coronal hole", and it is the deep blue-colored region in this image from NASA's Solar Dynamics Observatory:

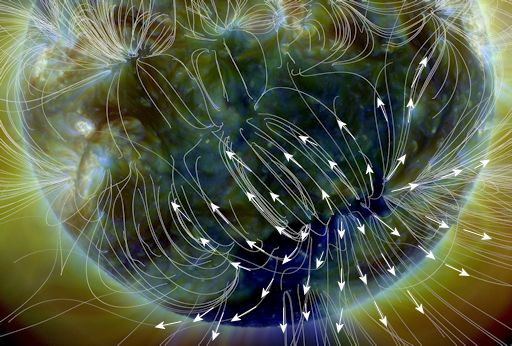

Coronal holes are places in the sun's atmosphere where the magnetic field opens upand allows solar wind to escape. White arrows in the image above show where solar wind is flying away from the sun.

Solar wind flowing from this coronal hole is expected to reach Earth on Jan. 22-23, with a 30% chance of minor geomagnetic storms when the wind arrives. Auroras will probably appear around the Arctic Circle, although their visibility may be mitigated by the glare of the nearly full Moon. Aurora alerts: text or voice.

Realtime Aurora Photo Gallery

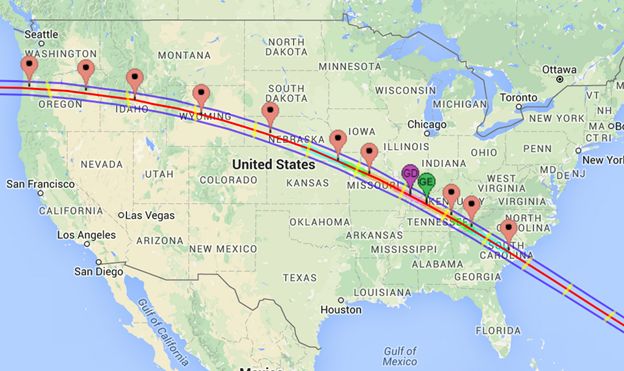

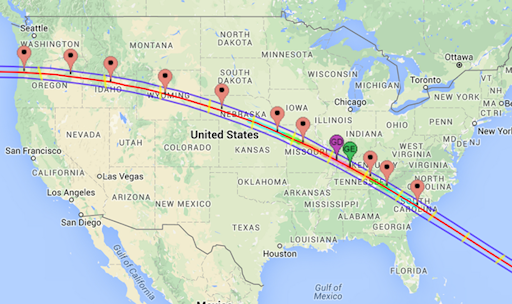

SOLAR ECLIPSE BALLOON NETWORK: Spaceweather.com and the students of Earth to Sky Calculus have developed a balloon payload that can photograph solar eclipses from the stratosphere. This sets the stage for a one-of-a-kind photography experiment: On August 21, 2017, the Moon will pass in front of the sun over the USA, producing a total eclipse visible from coast to coast. We will launch balloons to record the event from a dozen points along the path of totality:

Floating more than 100,000 feet above the clouds, the balloons will have an unobstructed view of the eclipse. From each of a dozen payloads, one camera will point up to record the sun's ghostly corona while another camera points down to record the passage of the Moon's dark shadow across the landscape below. When the eclipse is finished, we will combine the footage to create a unique video portrait of an eclipse sweeping across the American continent.

The payload has already photographed a partial solar eclipse in Oct. 2014: images. To test the payload under conditions of totality, a team of students and parents from Earth to Sky Calculus will travel to Indonesia six weeks from now to observe the March 9, 2016, total eclipse: animated map. Stay tuned for news from their expedition!

Readers, would you like to join the Solar Eclipse Balloon Network? Starting now we are recruiting teams of citizen scientists who we will train in the art of high-altitude ballooning to become members of the solar eclipse launch crews. Schools, scout troops, home school families and others are welcome to apply. This is a great way for novices to learn ballooning and to participate in authentic science. We will also be seeking sponsors for the 12 payloads. Contact Dr. Tony Phillips to register your interest.

Realtime Spaceweather Photo Gallery

MOONDUST-COLORED CONTRAIL: On Jan. 18th, Pete Lardizabal pointed his camera at the clear blue sky over St Johns, Florida, to photograph the waxing gibbous Moon. Just as he depressed the shutter, a plane flew by. Although the Moon was more than a quarter of a million miles behind the plane, the flyby appeared to kick up a plume of moondust:

Atmospheric optics expert Les Cowley explains what happened: "The turbulent exhaust stream of the 'moonside' engine is refracting and scattering light from the Moon, creating a 'moondust-colored contrail.' The trail can be seen crossing the Moon itself. Likely the other engine is producing an equally turbulent exhaust trail. However, its angular distance from the Moon's limb is too large for any lunar light to be scattered towards the camera."

The Moon will be full on Jan. 23-24. According to folklore, it is the "Wolf Moon." Monitor the realtime photo gallery for moonshots as more cameras turn toward the dusty orb in the days ahead.


Realtime Meteor Photo Gallery


Realtime Comet Photo Gallery

  All Sky Fireball Network
Every night, a network of NASA all-sky cameras scans the skies above the United States for meteoritic fireballs. Automated software maintained by NASA's Meteoroid Environment Office calculates their orbits, velocity, penetration depth in Earth's atmosphere and many other characteristics. Daily results are presented here on Spaceweather.com.

On Jan. 20, 2016, the network reported 19 fireballs.
(18 sporadics, 1 xi Coronae Borealid)

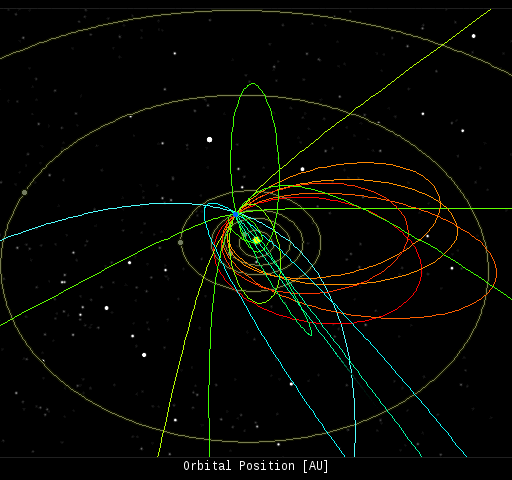

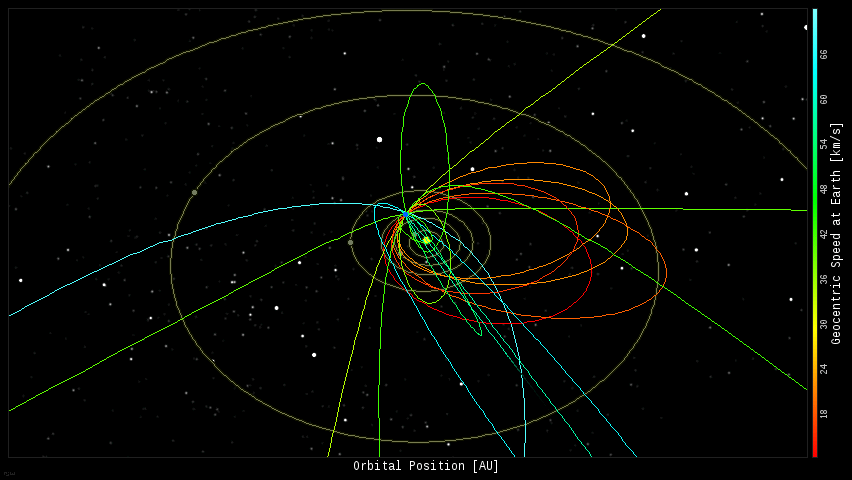

In this diagram of the inner solar system, all of the fireball orbits intersect at a single point--Earth. The orbits are color-coded by velocity, from slow (red) to fast (blue). [Larger image] [movies]

  Near Earth Asteroids
Potentially Hazardous Asteroids (PHAs) are space rocks larger than approximately 100m that can come closer to Earth than 0.05 AU. None of the known PHAs is on a collision course with our planet, although astronomers are finding new ones all the time.
On January 20, 2016 there were potentially hazardous asteroids.
Recent & Upcoming Earth-asteroid encounters:
Asteroid
Date(UT)
Miss Distance
Size
2015 YC2
Jan 15
4.9 LD
88 m
2016 AF166
Jan 21
9.3 LD
37 m
1685 Toro
Jan 22
60.9 LD
1.7 km
2001 XR1
Jan 23
74.4 LD
1.5 km
2015 VC2
Jan 28
5.8 LD
15 m
2016 BE
Feb 1
5.9 LD
103 m
2015 XA379
Feb 7
8.1 LD
38 m
2013 VA10
Feb 7
8.5 LD
165 m
2014 QD364
Feb 7
14 LD
16 m
2014 EK24
Feb 14
13.8 LD
94 m
2010 LJ14
Feb 16
68.5 LD
1.2 km
1999 YK5
Feb 19
51.7 LD
2.0 km
2010 WD1
Feb 22
12.3 LD
22 m
1991 CS
Feb 23
65.5 LD
1.4 km
2011 EH17
Mar 1
11.1 LD
52 m
2013 TX68
Mar 5
1.3 LD
38 m
2001 PL9
Mar 9
77.6 LD
1.2 km
Notes: LD means "Lunar Distance." 1 LD = 384,401 km, the distance between Earth and the Moon. 1 LD also equals 0.00256 AU. MAG is the visual magnitude of the asteroid on the date of closest approach.
  Cosmic Rays in the Atmosphere
Situation Report -- Oct. 30, 2015 Stratospheric Radiation (+37o N)
Cosmic ray levels are elevated (+6.1% above the Space Age median). The trend is flat. Cosmic ray levels have increased +0% in the past month.
Sept. 06: 4.14 uSv/hr (414 uRad/hr)
Sept. 12: 4.09 uSv/hr (409 uRad/hr)
Sept. 23: 4.12 uSv/hr (412 uRad/hr)
Sept. 25: 4.16 uSv/hr (416 uRad/hr)
Sept. 27: 4.13 uSv/hr (413 uRad/hr)
Oct. 11: 4.02 uSv/hr (402 uRad/hr)
Oct. 22: 4.11 uSv/hr (411 uRad/hr)
These measurements are based on regular space weather balloon flights: learn more.

Approximately once a week, Spaceweather.com and the students of Earth to Sky Calculus fly "space weather balloons" to the stratosphere over California. These balloons are equipped with radiation sensors that detect cosmic rays, a surprisingly "down to Earth" form of space weather. Cosmic rays can seed clouds, trigger lightning, and penetrate commercial airplanes. Our measurements show that someone flying back and forth across the continental USA, just once, can absorb as much ionizing radiation as 2 to 5 dental X-rays. Here is the data from our latest flight, Oct. 22nd:

Radiation levels peak at the entrance to the stratosphere in a broad region called the "Pfotzer Maximum." This peak is named after physicist George Pfotzer who discovered it using balloons and Geiger tubes in the 1930s. Radiation levels there are more than 80x sea level.

Note that the bottom of the Pfotzer Maximim is near 55,000 ft. This means that some high-flying aircraft are not far from the zone of maximum radiation. Indeed, according to the Oct 22th measurements, a plane flying at 45,000 feet is exposed to 2.79 uSv/hr. At that rate, a passenger would absorb about one dental X-ray's worth of radiation in about 5 hours.

The radiation sensors onboard our helium balloons detect X-rays and gamma-rays in the energy range 10 keV to 20 MeV. These energies span the range of medical X-ray machines and airport security scanners.
